Customised concrete systems

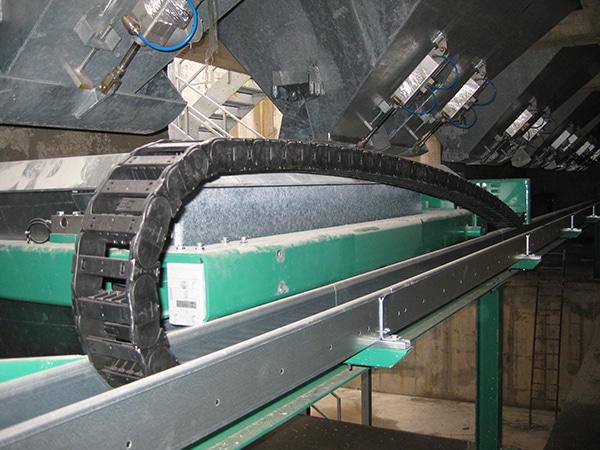

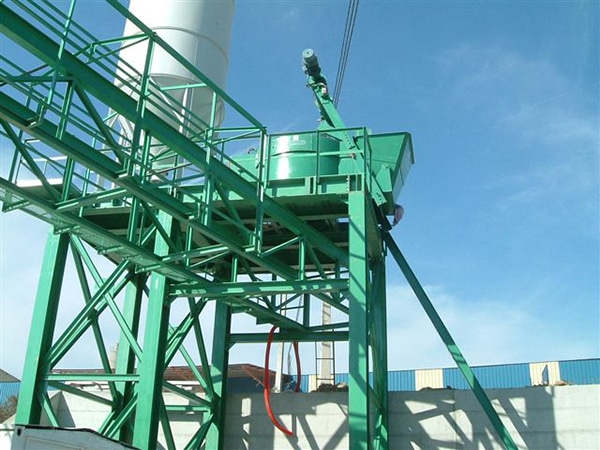

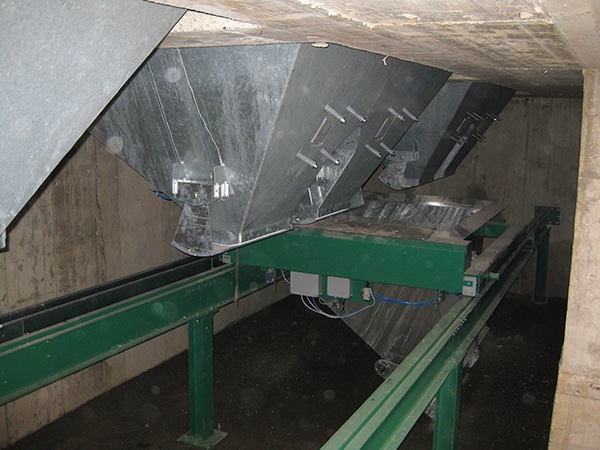

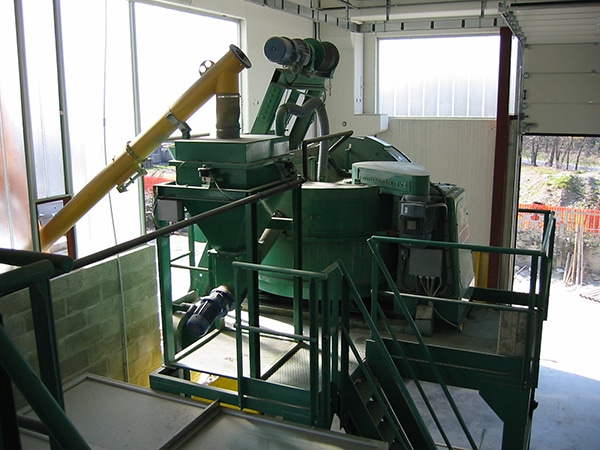

A conveyor-hopper system suspended on loading cells or a sliding weighing car is available for weight dosing.

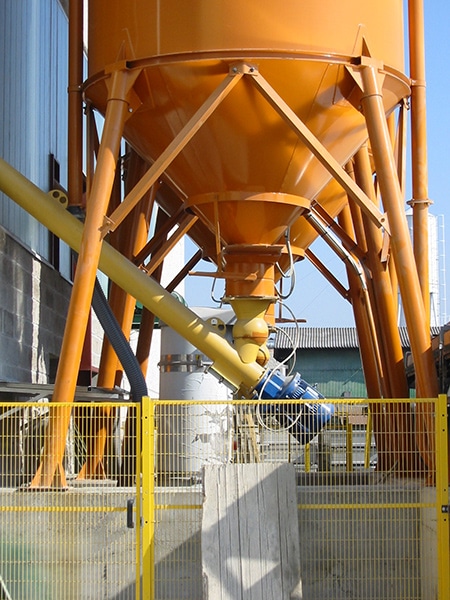

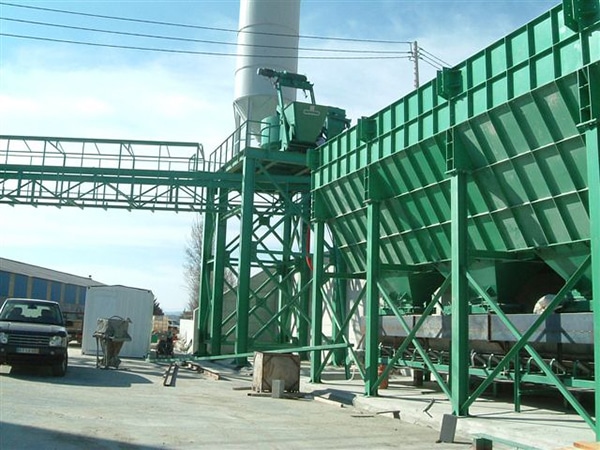

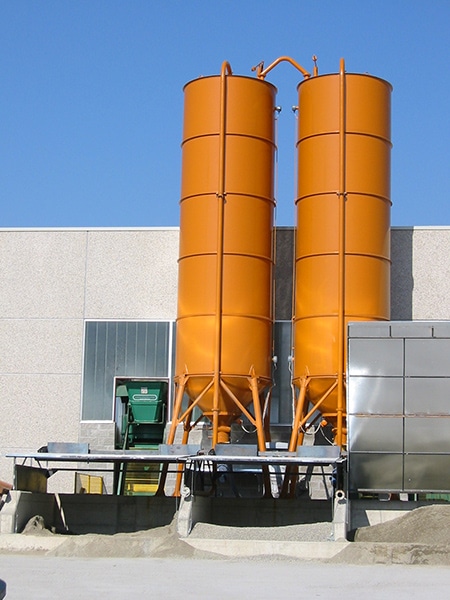

In particular, aggregates are stored in tanks equipped with hoppers with suitable extraction systems while cements are stored in metal silos equipped with surveillance and safety systems as well as an abatement system for the dust that forms during the loading phase.

In addition, the mixture water is dosed with a specifically-developed system whose functioning is based on the water/cement ratio developed. By reading the humidity level of aggregates and cement present in the mixer tank, the system supplies water based on the water/cement ratio set.

Finally, upon request we can provide additive dosing systems, systems for extraction and dosing of colours, steel fibres, etc.

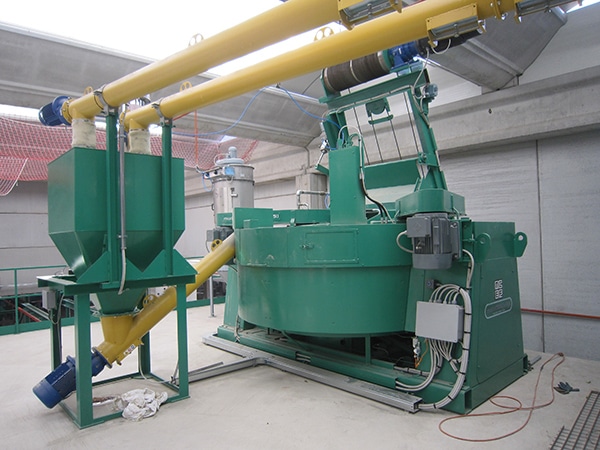

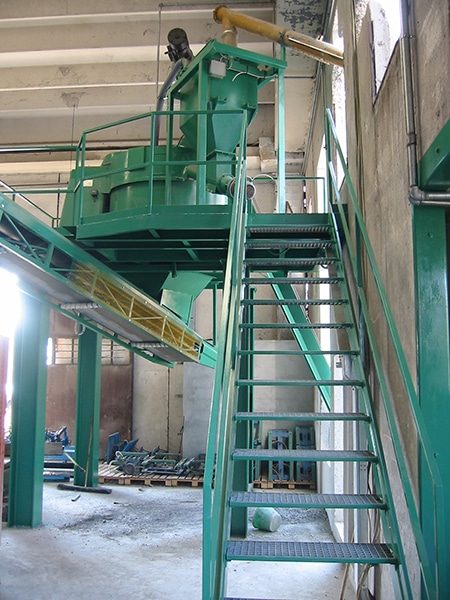

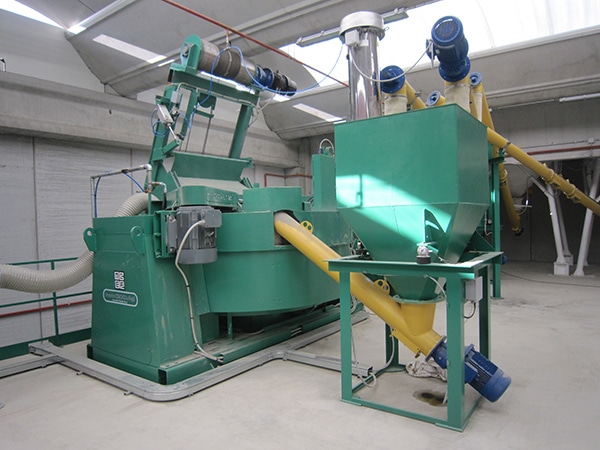

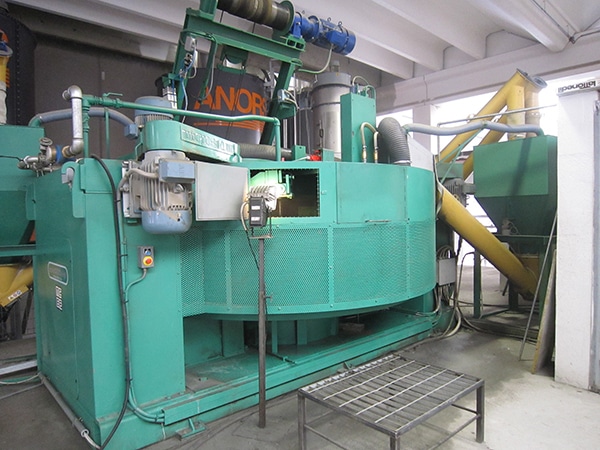

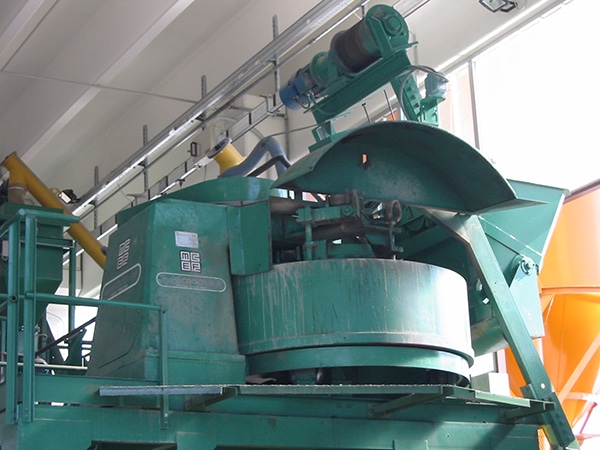

Our concrete mixers feature a counter-current rotating pan suitable for the production of all types of concrete used in the pre-casting industry.

With a direction of rotation of the mixer unit contrary to the direction of rotation of the tank, active and effective mixing is guaranteed to obtain smooth concrete with reduced mixing times.

To be more specific, the mixing units convey the concrete to the centre of the tank, into which it is unloaded via a hatch controlled by a hydraulic cylinder. A mobile blade is installed in mixers with a greater capacity, controlled by a hydraulic cylinder that proves useful in conveying the concrete towards the hatch and speed up the unloading.

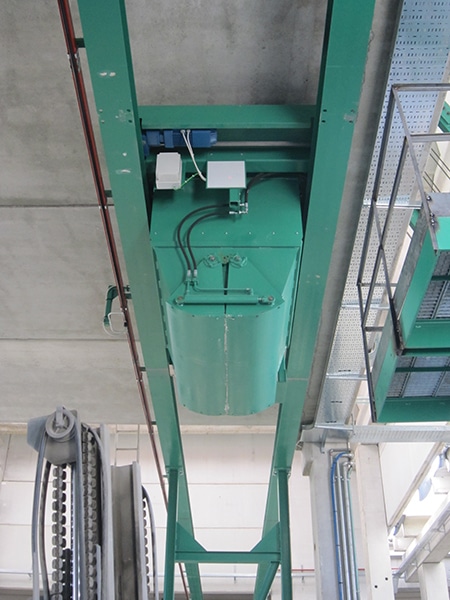

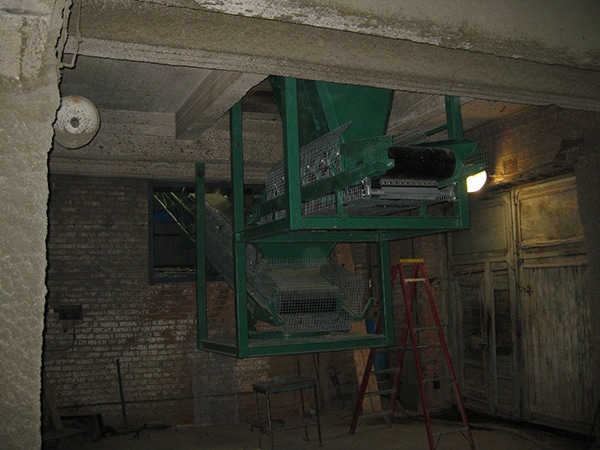

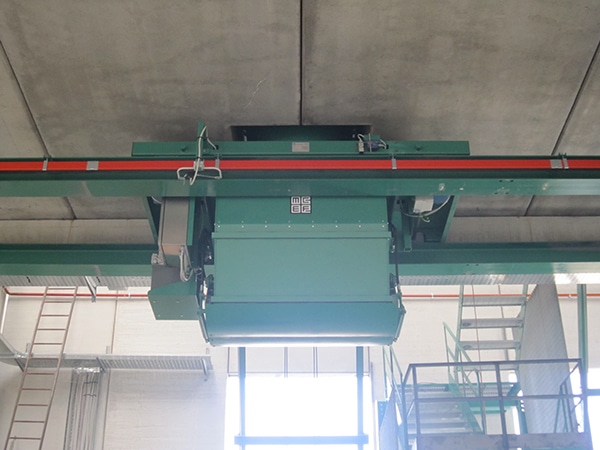

Concrete distribution with fixed and self-propelled machines is guaranteed by concrete-transporting cars built according to the client’s specific needs.

Guaranteeing a high speed that can reach 120 m/min, the cars slide on duo-rail lines, either straight or with bends, to overcome any slopes.

In addition, depending on the type of concrete to transport, unloading is via a bottom opening (controlled by hydraulic cylinders) or via rotation of the container.
